 Post subject: illspeed's Project- "Purple People Eater" PICS UPDATE PG. 1
PostPosted: Tue Oct 18, 2011 11:15 pm



260mm NCY gold rotor
Frando Chrome caliper
Purple upside down shocks
Coil on Plug NCY direct ignition kit (out of stock waiting to arrive)
Hide yo Shit underseat box

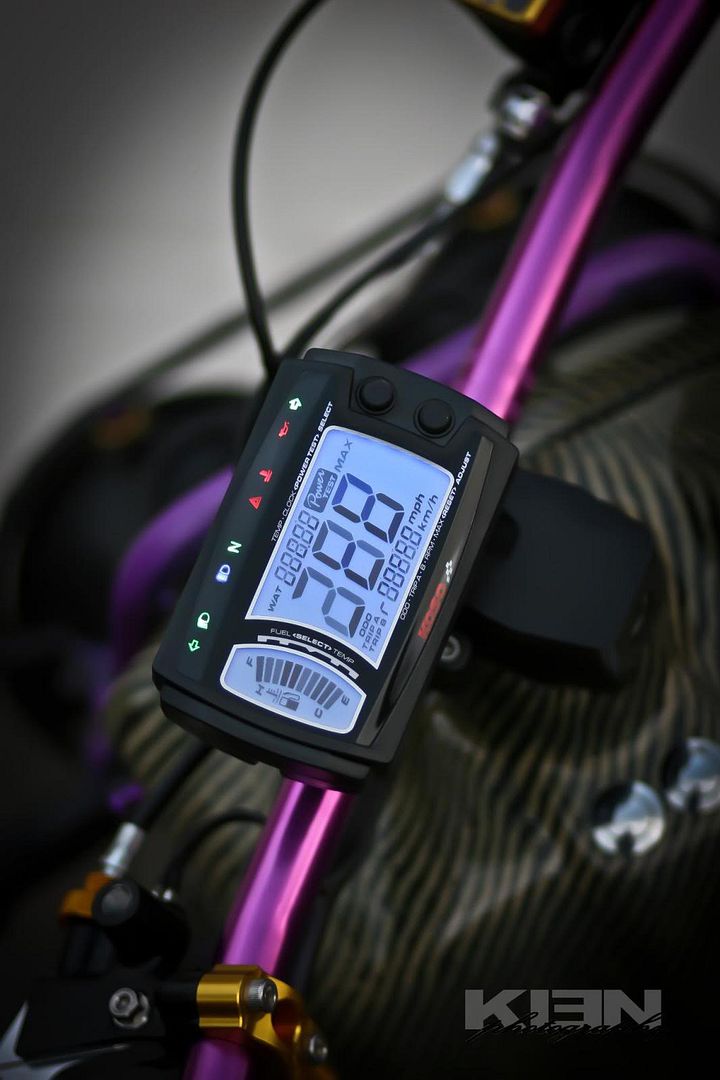

Koso speedo/gas gauge
Metropolitan fuel sending unit
new front tire- Continental
OEM honda nissin brake master cylinder with gold bling on it
Purple handlebar

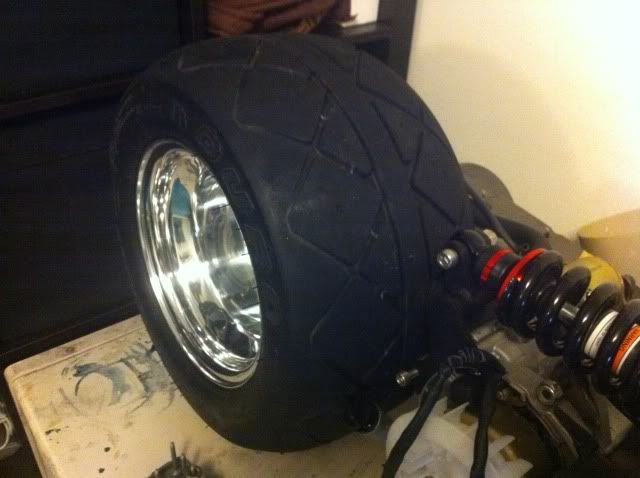

10x8 DWT wheel with Duro Top Fighter Tire, Tire has been shaved to clear dipstick as well as create a more "chopper" type rounded tire
Bi-Xenon HID headlight
Gold Rapid ratio throttle
Extended brake cable
Sequential brake light
Kevlar Floorboard
Kevlar battery box
Kevlar style seat cover
Dorby Hub
Mojo mount
DAN @ MAX wiring harness
DAN @ MAX gold grips

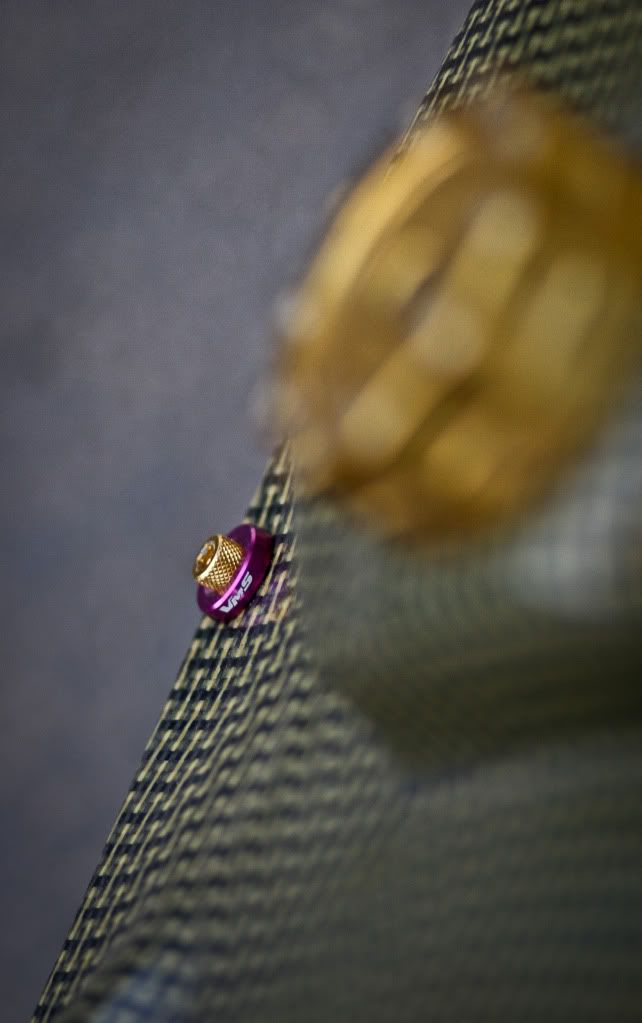

Custom gold and purple washers
Custom Gold and Purple Screws
T-Motorsports GY6( motor was SHIT!!! replaced head, cylinder, piston before running properly)
ECOTRONS FUEL INJECTION KIT- Fucking awesome! buy it!
Password JDM key guard
Password JDM Kevlar Extended Floorboard
Password JDM Handlebar Stem
Gold Brake line adjust

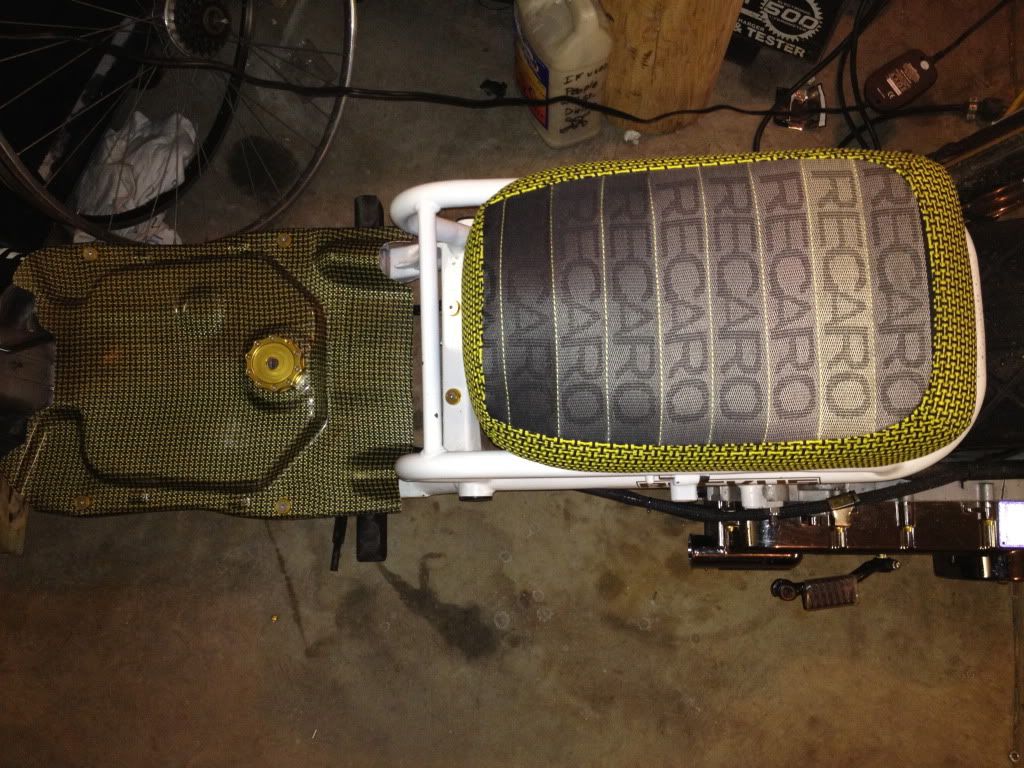

Got the kevlar extended gas tank cover to match the seat cover-

Here is how it started-

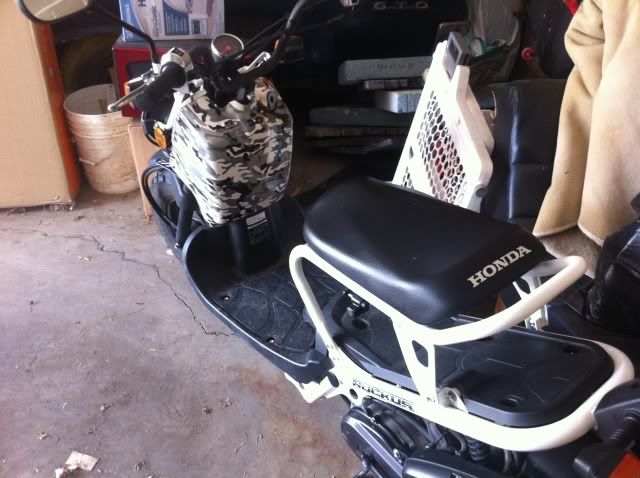

2007 Ruckus
\Image

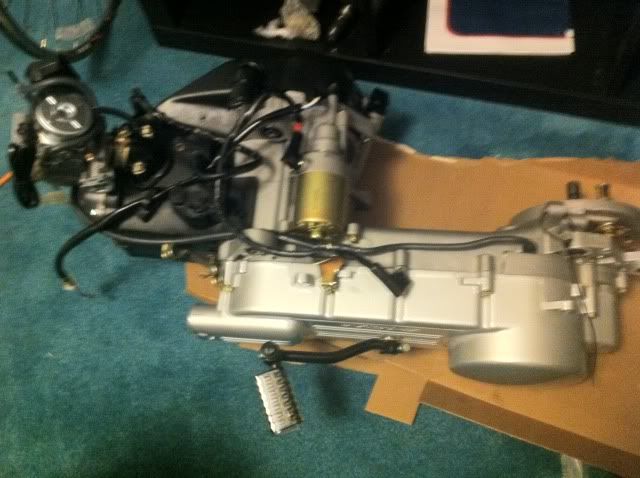

New T-Motorsports GY6 150cc

New Rear frame and Seat frame for build

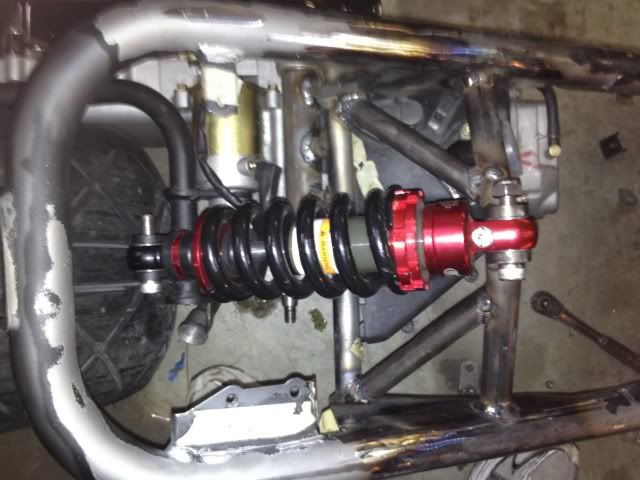

Mojo Mounts as well as Mojo Center Shock setup, Should be pretty sweet

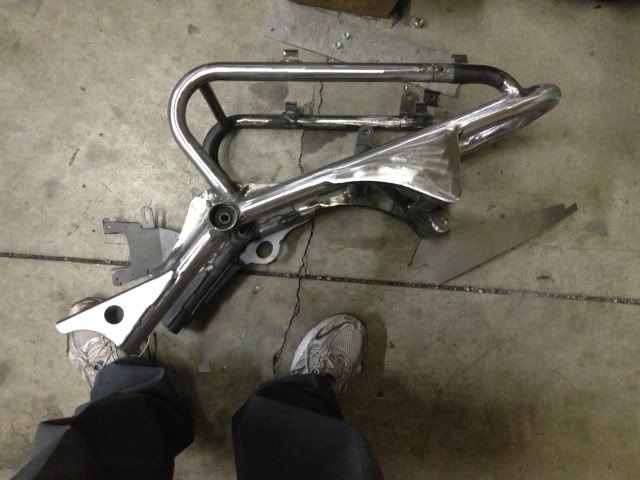

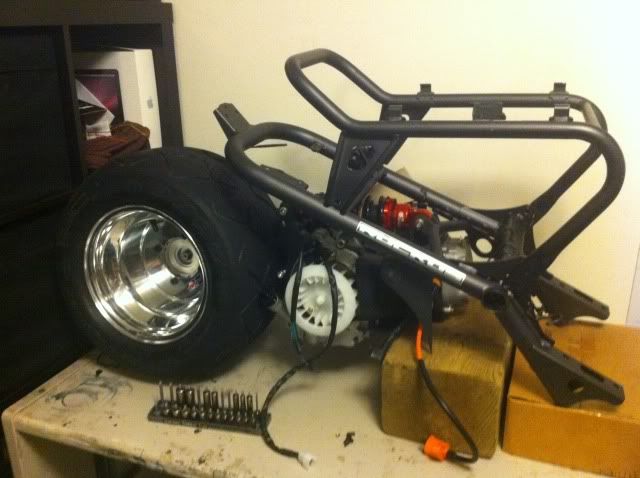

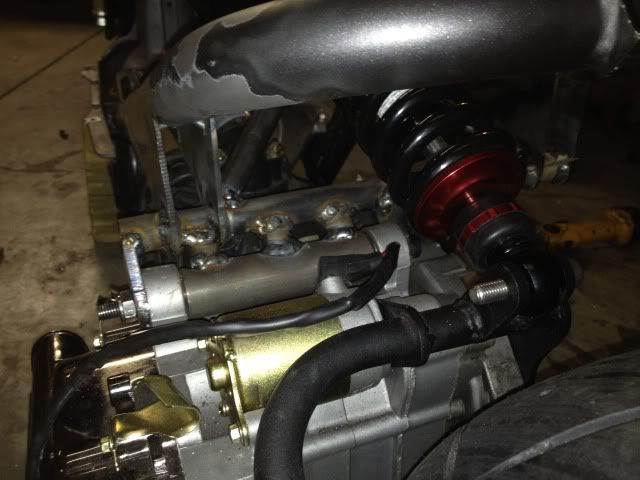

custom rear 1 piece rear frame,




_________________
My Ruckus PURPLE PEOPLE EATER


Last edited by illspeed on Thu Jun 21, 2012 10:20 pm, edited 10 times in total.

Top
 Profile


Zombies
Zombies
User avatar
Years on TRYears on TRYears on TRYears on TRYears on TR

Posts: 3244
Location: Gotham city, the 801
Gender: Dude

2011 TR Donor
Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Wed Oct 19, 2011 5:18 am
Nice start. I like those mojo center shock mounts.
:popcorn:

_________________

[/quote]mad hate, its a fucking scooter, sorry its not to your standards brah[/quote]


Top
 Profile


Ghosts
Ghosts
User avatar
Years on TRYears on TRYears on TRYears on TRYears on TR

Posts: 7130
Location: WNC Mountains
Gender: Dude

2011 TR Donor
Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Wed Oct 19, 2011 7:23 am
me too.. mojo shock is sweet.. watching this.. nice start

_________________
me: 2009 Translucent Blue Ruckus aka Project Stitch 626
new addition: 2014 Honda GROM - TDM Blue
wife: 2009 Blue/White Metropolitan - SOLD 2013

Hobbies ==>Youtube - Photography <==



Top
 Profile


TR's High Five Guy


Years on TRYears on TRYears on TR

Posts: 5925
Location: Kentucky
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Wed Oct 19, 2011 5:07 pm
:shock: god dam going to store now to get more popcorn!! i think im going need a lot. :popcorn:

that new motor is CLEAN............. of course. :banger:

mojo center shock is tits man! the fatty setupis amazing as well.

def keep us updated on pics. the hids and one piece custom rear frame sounds awsome!

_________________
viewtopic.php?f=95&t=57591
"First Timer"
viewtopic.php?f=95&t=64048
"Fairly 48"
viewtopic.php?f=95&t=78643
Metruckus


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sat Oct 22, 2011 2:12 pm

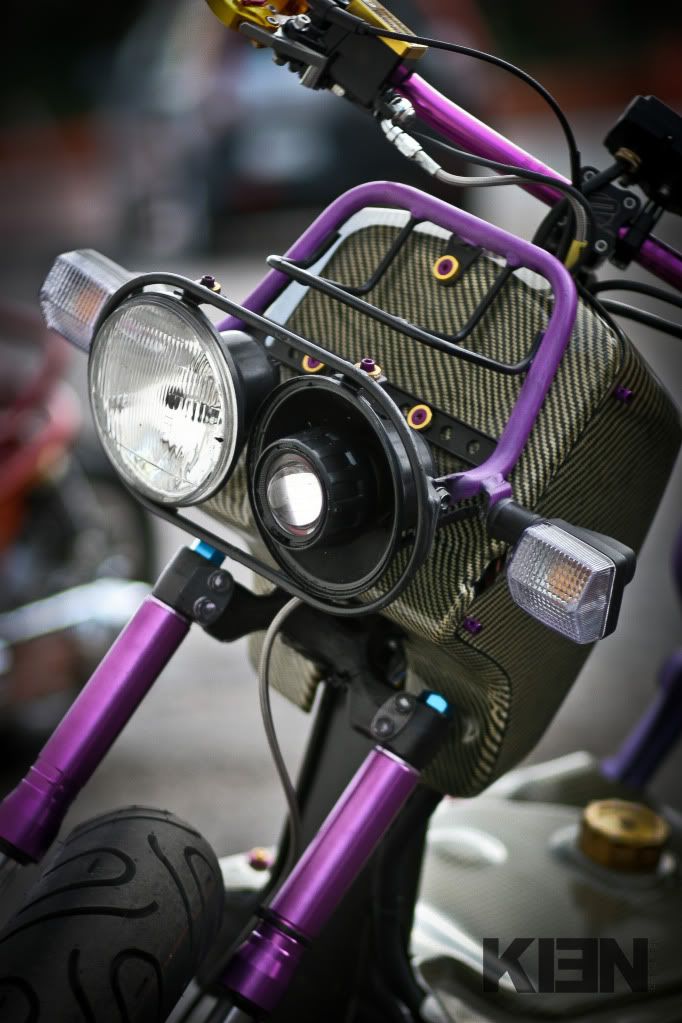

Installed one of my HID projectors today, Came out pretty sweet, but think i need to paint them black (reflector and housing around projector glass)

Here is a pic, and a short video showing the LO/HI operation of the HID.



_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


One of Us
One of Us
User avatar
Years on TRYears on TRYears on TR

Posts: 858
Location: Raleigh NC
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sat Oct 22, 2011 2:47 pm
Just curious what projector housing did you use? I have bought two off ebay and both were way to big to fit and look decent.

_________________
OttoFactory Build Thread


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sat Oct 22, 2011 3:11 pm
Otto347 wrote:
Just curious what projector housing did you use? I have bought two off ebay and both were way to big to fit and look decent.


This one
http://www.ebay.com/itm/UNIVERSAL-HID-BI-XENON-MOTORCYCLE-PROJECTORLEN-KIT-C229-/170685975701?pt=Motors_Car_Truck_Parts_Accessories&vxp=mtr&hash=item27bdad4c95

_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sat Nov 19, 2011 10:12 pm
Update-

Frame is almost done- Picture sometime next week.

So i have spent the past two weeks seriously studying the differences between the ruckus wiring and what is needed to run a GY6.
because of this and my natural curiosity being an engineer and fabricator, this thought came to me...

The main difference between the GET motor and the GY6 as well as the root of the majority of problems when trying to utilize the OEM harness for the swap, is the charging system.

This thought overwhelmed me for the past two days until i decided to look further into it.

The GET motor has a pretty ingenious solution for starting and charging and it works really good. So why wouldnt it work on the GY6?

I have decided to find out so here is what i have done so far...

I took the stator/starter off of the get motor to compare it to the GY6 stator. I found that the flywheel of the GET is nearly identical in size to the GY6, with the GET being only 1mm larger in diameter to the GET and has the exact same Height as the GY6.

Second, I found the Shaft taper angle to be the same as well as the final diameters (the small end of the stators shaft hole) to be within 1/2mm .
The shaft key-way is identical on both.

Third- The stator on the GET is much larger in many aspects but very similar others. This is mainly due to the GET's built in starter.

Fourth- the shaft on the GET's flywheel that slided over the crankshaft, is much much larger that the GY6 (this may or may not be an issue)

I dont have my GY6 at home so later this next week im going to do some machining and such...

BASICALLY......

I am 98% sure that i have found a way to run the entire GET electrical system, including starting capabilities, on the GY6, eliminating the need for any change in wiring. I have always been a fan of keeping things as stock as possible, especially when it comes to honda. One of the things that led me to this curiosity was the fact that the GY6 was originally designed by honda, and being that Honda generally has kept a history of maintaining dimensions and using that same information and technology on multiple platforms, should yield that there are similarities which would allow for the stator and flywheel to work on the GY6.

Now there is alot that i am not telling you because i literally have over 80 hours of thought and research into this.....

If i am right though and this idea does work, it will definitely eliminate nearly all of the issues of running a GY6 using the OEM harness.

Some pro's of doing this-
keeping stock fuel pump
OEM starter will work
No charging issues
No hacking of your precious OEM harness!

Things that are left to be discovered...
Timing differences between the GET and GY6 as the GY6 will be completely controlled by the OEM ECU.

_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


Zombies
Zombies
User avatar
Years on TRYears on TRYears on TRYears on TRYears on TR

Posts: 3244
Location: Gotham city, the 801
Gender: Dude

2011 TR Donor
Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sun Nov 20, 2011 10:08 am
:banger:
:popcorn:

_________________

[/quote]mad hate, its a fucking scooter, sorry its not to your standards brah[/quote]


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Thu Dec 01, 2011 8:20 pm
Got my Jiange Wayne super low shocks installed with the mnnthbx Drum brake adapter. Low on cash right now so this was a very viable alternative to getting the disc kit for the time being.

Installed PWJDM Stem and handlebar kit and installed the stock controls on it.

Relocated the Front blinkers to where the reflectors used to be.

Still working on one piece rear frame.

Also machining the GET stator to fit on the gy6 next week, will also need to modify the GY6 motor slightly but should work no problem.

more to come soon.

_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


TR's High Five Guy


Years on TRYears on TRYears on TR

Posts: 5925
Location: Kentucky
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Fri Dec 02, 2011 10:06 pm
dang man you sound like my freind who is also in enginnering school lol. but good good stuff. love the projector light what all was needed exactly to get it to function correctly?

and are you going to paint the housing behind it black? i think that would be tits! :banger:

good build so far :banger:

_________________
viewtopic.php?f=95&t=57591
"First Timer"
viewtopic.php?f=95&t=64048
"Fairly 48"
viewtopic.php?f=95&t=78643
Metruckus


Top
 Profile


Ride Game Participant
Ride Game Participant
User avatar
Years on TRYears on TRYears on TRYears on TR

Posts: 5246
Location: Central FL
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Fri Dec 02, 2011 11:14 pm
Looks great so far just one question, why go through the hassle of making the GET harness work when you can convert a gy6 harness for 20$ and about 2hrs of work?

The only thing stock ecu is good for after swapped is running the fuel pump but a mikuni is proven to flow plenty of fuel and is plenty reliable

_________________
OFFICIAL PC Crazzies Street Team Member

Elite SR50 slammed with GET Powurr <CLICKY
That new new '13 Metropolitan <CLICKY


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Fri Dec 02, 2011 11:40 pm
ruckus09 wrote:
dang man you sound like my freind who is also in enginnering school lol. but good good stuff. love the projector light what all was needed exactly to get it to function correctly?

and are you going to paint the housing behind it black? i think that would be tits! :banger:

good build so far :banger:



To get the projector to work i just used a slim HID ballast hooked up as directed.

I think i will end up doing a carbon fiber shroud around the projector rather than just painting the housing.

_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


Junior Mint
Junior Mint

Years on TRYears on TRYears on TR

Posts: 174
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Fri Dec 02, 2011 11:58 pm
Strokd_GE wrote:
Looks great so far just one question, why go through the hassle of making the GET harness work when you can convert a gy6 harness for 20$ and about 2hrs of work?

The only thing stock ecu is good for after swapped is running the fuel pump but a mikuni is proven to flow plenty of fuel and is plenty reliable



A very good question as to why i want to use the GET harness Vs. using the GY6!

The first reason is because, i never like taking to thing things the same way that everyone else has. I am an engineer and industrial designer who likes to use what is available already but try to figure out a new way to use it or manipulate it into something unique.

The second reason is because i am fascinated by the starter/alternator on the GET, so why not put it to use on the GY6?
I like electronics and the OEM electronics on the ruckus are pretty neat. I like the reliability of the electric fuel pump though i do know that a mikuni will do the job, i just prefer it to work and to never have to worry about having to prime a pump if i run out of gas.

Third, It gives me a reason to design a new right side crank cover which will properly hold the GET stator as well as allow me to expand the oil capacity, thus lowering oil temperature, as well as shorten the oil fill tube so clearance issues for people running 8+" fatty tires will not have an issues.

It may be rediculous but thats literally how i live my life!
Here are some pics of my car as a reference as to what i mean...

Its a 1990 accord, 612hp with a completely shaved engine bay that i hand wrapped in carbon fiber as well as made a MIL-spec wiring harness from scratch for.



_________________
My Ruckus PURPLE PEOPLE EATER


Top
 Profile


Shot Caller
Shot Caller
User avatar
Years on TRYears on TRYears on TRYears on TR

Posts: 1941
Gender: Dude

Offline
 Post subject: Re: illspeed's first gy6 project
PostPosted: Sat Dec 03, 2011 12:14 am
interesting accord u got there i like how its cf wrapped never seen that done..i have never seen anyone setup the dyno backwards like that either lol..exhaust going inside instead ..curious to the outcome of this gy6 project looks promising! do what others havent done yet :banger:

_________________
2t build
4t build

drowsports
standardfunctions

RUCKAHOLIC!


Top
